Container Family is a professional leader China 20ft platform container manufacturer with high quality and reasonable price. The 20ft Platform Container is a specialised container for the storage and transportation of odd sized goods which may not fit in any other container. Platform Containers have lashing points to keep cargo secure.

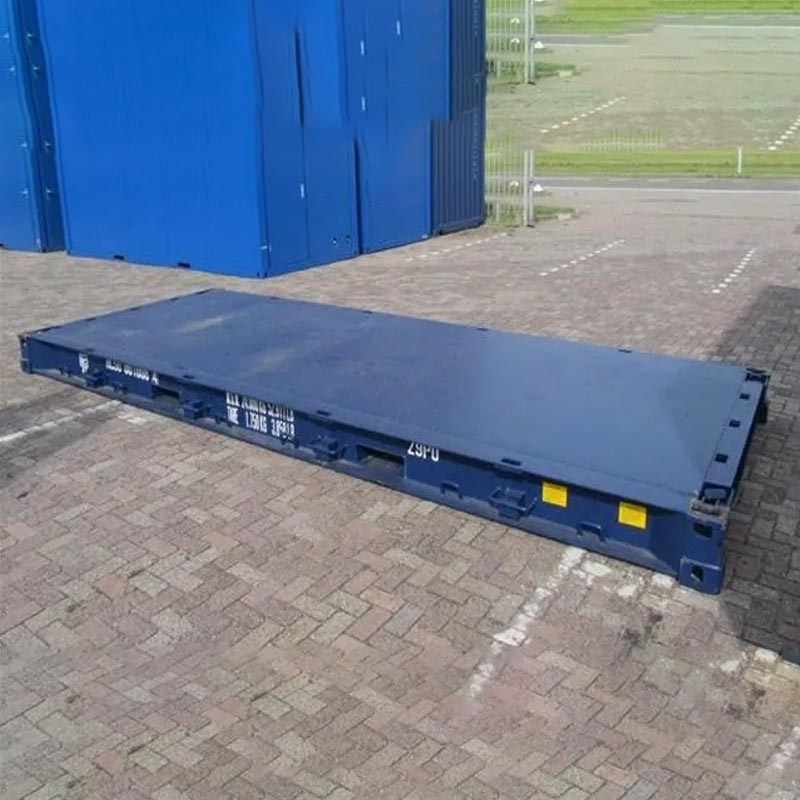

The 20ft Platform is a special type of container. It is 32,5 cm high and equipped with a steel floor. This makes the platform extra strong, with a payload of 28 tons. The 20ft platform container is therefore the perfect solution for the transportation of cargo that does not fit in regular containers.
CLASSIFICATION | DIMENSION | |
MAX. GROSS WEIGHT | 30480 KG | |
TARE WEIGHT | 1800 KG | |
MAX. PAYLOAD | 28680 KG | |
EXTERNAL | LENGTH | 6058 MM |
WIDTH | 2438 MM | |
HEIGHT | 3238 MM |
The 20Ft platform container features an open top design and robust structure, suitable for carrying oversized goods. It ensures secure and efficient transportation.
Our 20ft platform containers fill important niches in the transport industry. One example is the transport of steel coil, which is dangerous to transport due to the extreme density of the load and its tendency to roll. Steel coil is loaded horizontally, permitting it to roll, because the centre of the coil can be used as a forklift tyne pocket. Our 20ft platform containers can eliminate this safety risk, as they feature standard container corner casts for lifting. Steel coil can be loaded onto the platform vertically, and the platform lifted with a normal container forklift. Intermediary depots which may not possess the specialised equipment needed to lift a steel coil vertically can use the platform container to transfer the load safely and efficiently.

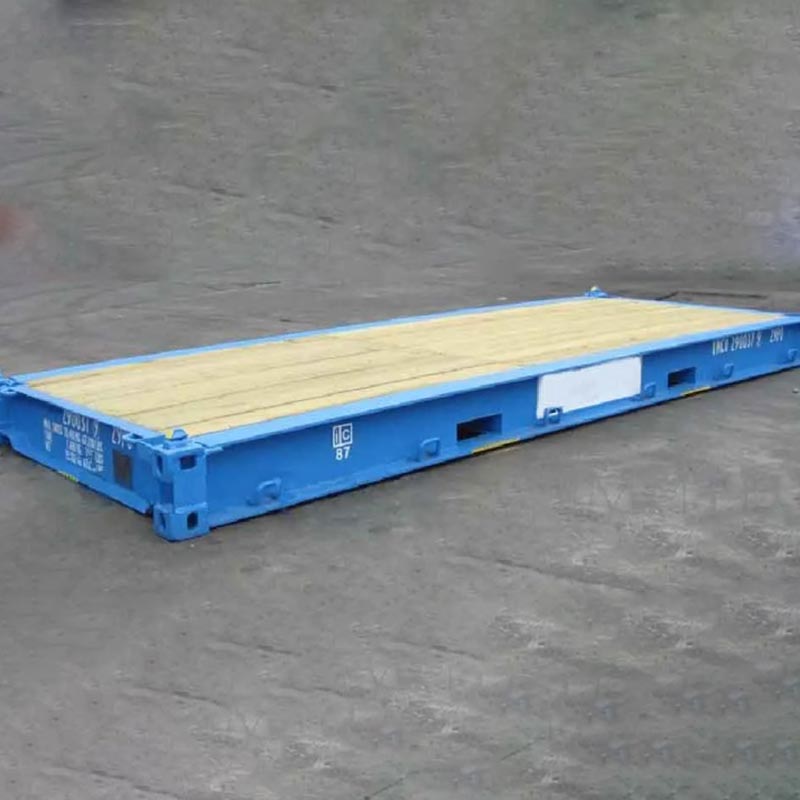

A platform container is a container that does not have any sides, ends, or roof. It typically consists of a steel frame and a wooden floor structure. Due to its rigid structure, it has a high loading capacity making it possible to concentrate heavy weights on small areas.
A platform container is used for cargo that is too large to fit on or in a standard container. Its floor arrangement design enables it to carry extremely heavy and odd-shaped cargo such as construction machinery, airplane parts, and trailers.
The dimensions of platform containers are 20ft and 40ft. The 20ft is roughly 6 meters long, 2 meters wide and 0.3 meters tall. 40ft platform containers are about 12 meters long, 2 meters wide and 0.6 meters tall.

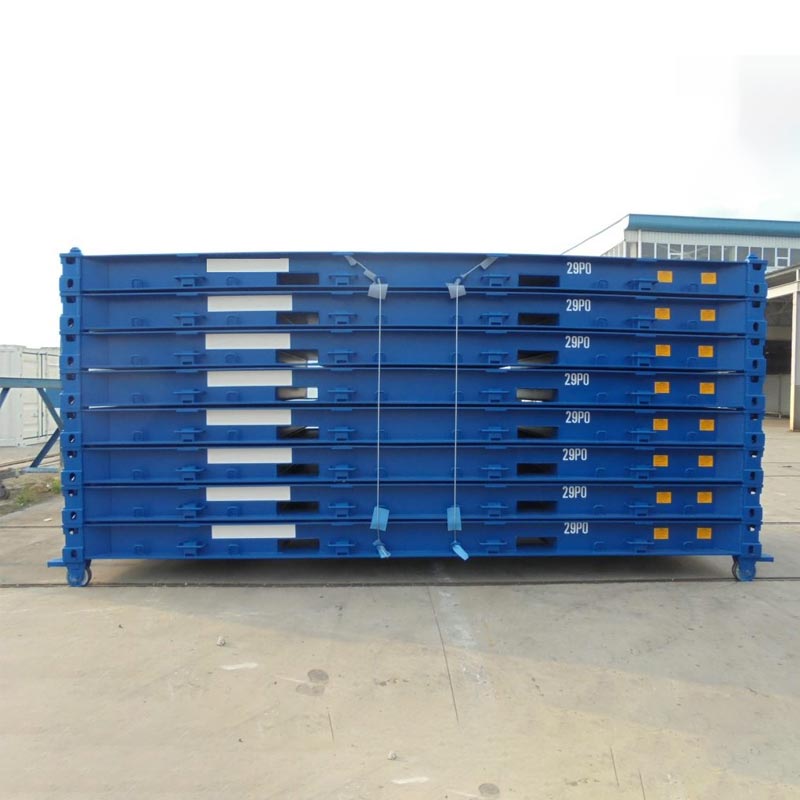

A platform container is used by attaching numerous lashing rings along the longitudinal bars to load the heavy cargo, safely and steadily. Platform containers can be linked together to provide a larger platform for heavy loads that exceed the capacity of a standard platform container.
